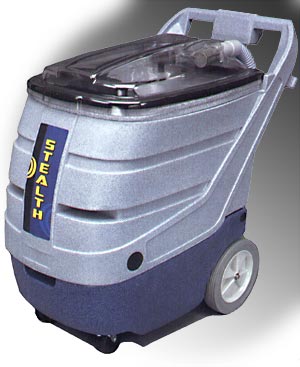

The
Stealth series of portable extractors have a large 17-gallon
capacity to handle tough commercial jobs with ease. This unit
doubles as a powerful dry vacuum, eliminating the need for two
separate pieces of equipment. For the ultimate in
productivity, consider the optional factory installed Heat 'N'
Run system to deliver 200-degree heat in just 90 seconds!
Built with a patented bladder system, the Stealth offers large
capacity cleaning in a compact design. A see-through recovery
dome allows easy monitoring and access. The most powerful unit
uses two power cords and produces maximum pressure and
suction, leaving carpets clean and dry in record time. All
models come complete with a deluxe dual-jet stainless steel
S-bend wand and hose assembly. All heated and other dual-cord
units come equipped with a circuit locator.
SPECIFICATIONS
Solution Tank
17 Gallon
Recovery Tank
15 Gallon
Solution Pressure
100/500 PSI
Vacuum Motors
Dual 2-stage/ Dual 3-stage
Water Lift
150/180/150/210 inches
Wand
Dual-jet stainless stell S-bend
Hose Assembly
25 ft.
Tank Construction
Polyethylene
Baseplate
¼" aluminum
Rear Wheels
10 inches, non-marking
Casters
4 inches
Power Cord
50 ft.
detachable
Dimensions
37"H x
36"L
x 19"W
Weight
78/95/97/101/112 lbs
Ship Weight
116/123/125/127/142 lbs.
Ship Dimensions
40" x 39" x 22"
* For units with heat, add 14
lbs. to ship weight.
WARRANTY
6 years on tank, 1 year on parts
FEATURES
Exclusive
clamshell body provides fast and easy internal access for
quick servicing.
Flexible,
lift-out bladder.
"No drip"
motor cavity guarantees water spilled on the outside of
machine stays out!
50 foot
detachable power cord.
Upright-mounted motors with a specially-designed intercooler
system guarantee long-lasting life.
Stair-climbing handle combined with large rear wheels
increase maneuverability.
See-through
recovery dome.
Top-mounted
switches.
OPTIONAL ACCESSORIES
1204AC
Powermate -
12" wide powerbrush
321AC
Upholstery
Tool
323AC
Prespray
Wand
L00814
Cloth Dry
Filter Bag
MODELS
All
come complete with 25-feet hose assembly and dual-jet
stainless steel S-bend wand.
All models available with optional HEAT-Add "H" to model
number (1700SH, etc.)
