SPECIFICATIONS |
|
Solution Tank |
7/8/12 Gallon |
|
Solution Pressure |
50 PSI |
|
Vacuum Motor/700 |
112 CFM; 2 HP |
| Vac Motors 800/1200 |
Dual , 2-stage bypass 200CFM,
3.5 HP |
|
Brush Motor |
4200 RPM, 1/6 HP |
|
Brush Speed |
2100 RPM |
|
Brush Style |
Chevron design |
|
Brush Bearings |
Sealed,
stainless steel ball bearings |
|
Cleaning
Width |
17/19/19 inches |
|
Tank Construction |
Polyethylene |
|
Wheels |
8 inches, non-marking |
|
Power Cord |
50 ft.
detachable |
|
|
25 ft. |
| Dimensions |
|
| 700 |
37.5"H x
31.75"L x 17"W |
| 800 |
38"H x 39"L
x 19.25" W |
| 1200 |
38"H x 39"L
x 19.25"W |
|
Weight |
87 lbs./113 lbs./123 lbs. |
| Shipping
Weight |
115 lbs./136
lbs./146 lbs. |
|
Ship Dimensions |
32" x 20" x 40" (700) |
|
|
26" x 46" x 42" (800/1200) |
|
|
|
|
WARRANTY |
|
6 years on tank, 1 year on parts |
|
|
FEATURES |
 |
Two-way
system for forward and reverse operation. |
 |
Patented
self-adjusting, self-leveling brush and vacuum shoes for
easy cleaning of all carpet lengths and uneven floors plus
longer brush life. |
 |
Exclusive
"clamshell" body provides fast and easy internal access for
quick servicing. |
 |
Patented
lift-off recovery buckets - no drain hose. |
 |
Fully
adjustable handle. |
 |
Patented
4-wheel design gives extraordinary balance and reduces
turning radius for easy maneuverability in tight areas. |
 |
Side
extension for cleaning right to baseboards.
|
|
OPTIONAL ACCESSORIES |
| 1204AC |
Powermate -
12" wide power brush |
| D02359-1 |
Adapter to
connect standard 1½" diameter hose assemblies |
| 358AC |
Upholstery
Cleaning Kit
Upholstery Tool, vacuum and solution hose assembly and hose
bag. |
| 323AC |
Pre-spray
wand |
| 1033AC |
Single-jet
wand |
| 1034AC |
Dual-jet
wand
|
|
MODELS |

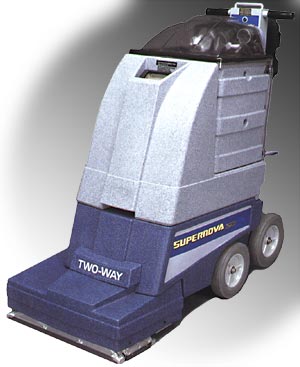

| 700PSN |
7-gallon
Supernova |
| 800PSN |
8-gallon
Supernova, Dual Vacuum |
| 1200PSN |
12-gallon
Supernova, Dual Vacuum |
|
