Total Zone Ozone Generation System

  Home > Restoration Equipment > Total Zone

Total Zone Logo

TZUV-300 & TZUV-600
Advanced Air Purification Equipment

Natural Odor Removal & Air Purification With Activated Oxygen

The Total Solution to Air Quality Problems in Your Home Or Business

Introducing Total Zone
Total Zone ozone generators are the most modern, technically advanced systems on the market today. Total Zone uses a patent pending corona discharge technology known as "SP-ARC", Silicate Polarized Arc. This new process allows the Total Zone ozone generator to produce much higher levels of ozone than any competitive model with little or no maintenance. All the Total Zone ozone generators are designed and built for the utmost reliability in the harshest environments.

Ozone Generator Toronto

Total Zone Ozone Generators Will Eliminate:

Cigar & Cigarette Odors Germs, Bacteria & Virus Beauty Shop Odors
Pet Odors Painting Odors Gym Odors
Mold & Mildew Odors New Carpet Odors Garbage / Dumpster Odors
Cooking Odors Smelly Shoe Odors Bathroom Odors
Offensive Body Odors Musty, Stale Odors Etc... Etc... Etc...
What is Ozone & How Does it Work?
Ozone is a naturally occurring substance found in nature that we cannot live without. Ozone is an activated form of oxygen with three atoms where regular oxygen has two. Ozone in the upper atmosphere filters out harmful rays from the sun without which all life on earth would cease to exist. Closer to home ozone is produced by lightning in thunderstorms. I'm sure you have experienced the freshness in the air after a storm. Ozone is very unstable and has an average life of 20 minutes, this is why ozone must be produced at the point of use and cannot be stored in a container for later use. Ozone will cast off it's third atom onto any other organic element thereby oxidizing it or converting it to another substance. In the case of odors it will convert a foul-smelling substance into a non-odorous substance naturally with no unhealthy chemicals to buy, store or use. Once ozone has done its job it converts back to oxygen. Ozone will also deactivate and destroy molds, bacteria, virus, fungus, and mildew.

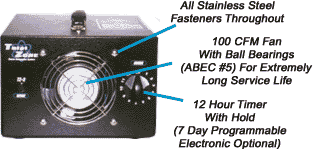

Total Zone Front Pic

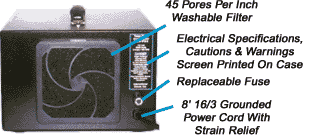

Total Zone Back Pic

Model TZUV-300 TZUV-600
Size 12 " * 9" * 6" 12 " * 9" * 6"
Weight 6 lbs. 12 oz. 7 lbs. 12 oz.
Timer 1 Hour with Hold 1 Hour with Hold
Generator 185-254 NM Wave-Length 185-254 NM Wave-Length
Fan 100 CFM 100 CFM
Ozone Output 300 Milligrams Per Hour 600 Milligrams Per Hour
 Maximum Treatment Area (Cubic Feet) 12,000 24,000
Primary Volts / Amps 110 / .5 110 / 1
Hertz Cycles 50 / 60 50 / 60
Case Material Anodized Aluminum
.060 / 14 Gauge
Anodized Aluminum
.060 / 14 Gauge
Finish Industrial Powder Coat Industrial Powder Coat
Warranty One Year Parts & Labor, 5 Year Output One Year Parts & Labor, 5 Year Output
Introducing Total Zone / Ultra V Series
Total Zone / Ultra V ozone generators are the most modern, technically advanced systems on the market today. The Total Zone / Ultra V series of ozone generators utilize a proprietary TZUV-Chamber technology that allows them to produce high levels of ozone with the distinct advantage of being completely maintenance free. The TZUV-Chamber has an average life expectancy of 10,000+ hours of use. This equates to more than 8 hours per day, 5 days a week, for 5 years. When, if ever, the TZUV-Chamber requires replacing, it is very simple and inexpensive to do. All Total Zone / Ultra V ozone generators are designed and built for the utmost reliability in the harshest environments.
Markets For Total Zone Ozone Generators
All hotel rooms can be non-smoking but they can still be smoked in.
All used cars can be odor free, easier to sell.
All fire and water damage companies use ozone.
Apartment complexes can save on carpet replacement and extensive cleaning services after tenants move out, especially if they had animals.
Restaurants, Bars, etc. can cut down on offensive odors and give their patrons a much more enjoyable atmosphere to dine and socialize in.
Realtors can remove all odors from homes they are trying to sell. A smelly house is hard to sell.
Painters can remove the offensive paint odor much sooner so that their customers do not complain.
Carpet installers can get rid of the smelly and unhealthy VOCs (Volatile Organic Compounds) put off by new carpet.
Rental cars can be deodorized and have smoking odors removed before the next rental.
Health clubs and gyms don't have to smell like health clubs and gyms anymore.
Dry cleaners use ozone to deodorize draperies and upholstered furniture.
Home owners can ozone on a regular basis to keep their homes fresh, clean smelling and much healthier.
Boats can be kept odor, mold, and mildew free.
Ozone will kill or deactivate mold, mildew, fungus, bacteria virus, germs, etc.
Sick buildings can benefit immensely from regular ozone treatments. This is much cheaper than replacing drywall, carpet, AC duct work, etc.
Allergy sufferers can live in a purified environment free from mold, mildew, spores, VOCs, fumes, etc.
Business' can benefit by cutting down on employee sick days by ozoning after hours to rid the work environment of unhealthy substances.
Factories can oxidize unlawful and unhealthy chemical emissions from their exhaust systems
