The
Hydramaster Boxxer 421...Rugged, Tough and Smooth Running Once again
Hydramaster leads the truckmount industry with the new Boxxer
421. Combining a new Briggs and Stratton power plant with a
radically improved blower design and a state-of-the-art heat
exchanger system, Hydramaster's Boxxer is a smooth, low
noise/low vibration machine with incredible cleaning
performance.
New

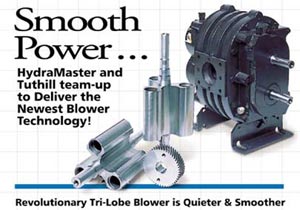

Revolutionary Blower Technology
The New 4005X Tri-Lobe Blower,
developed exclusively for Hydramaster by Tuthill provides
increased displacement for high CFM, yet emits less disturbing
noise than other number 4 blowers. While other blowers use
grease fittings, the 4005X employs an oil bath for greater
unit life and less maintenance.
Superior
Performance...
The Boxxer is HOT!
A unique, mid-priced slide-in with big machine vacuum performance and heat. Powered by a 21HP Briggs & Stratton engine, this new truckmount features new vacuum blower technology not previously used in the carpet cleaning industry. The innovative Dominator™ 4005X Tri-Lobe Blower delivers increased CFM air displacement with improved noise dampening. The Boxxer’s innovative heat-exchanger system gives the operator the option of adjustable temperatures, 15 degrees hotter than any other truckmount in its class.
Smart
Heat Control If water damage restoration is part of your operation, you'll
find the standard equipment ADC, Automatic Diverter Control a
valuable feature. Unlike many units on the market, the
Boxxer's heavy-duty diverter is designed to last and won't
need constant repair or replacement.
Valuable
Options Options like the undermounted 85 gallon fresh water tank and
Auto Pump-Out system will increase your production and
convenience.
Equipped
for Flood Work Your Boxxer comes with an ADC Heat Control System and it's
ready to offer flood damage restoration. Hydramaster's system
is built-to-last using a heavy-duty stainless steel diverter
valve coupled to a thermostat actuator.

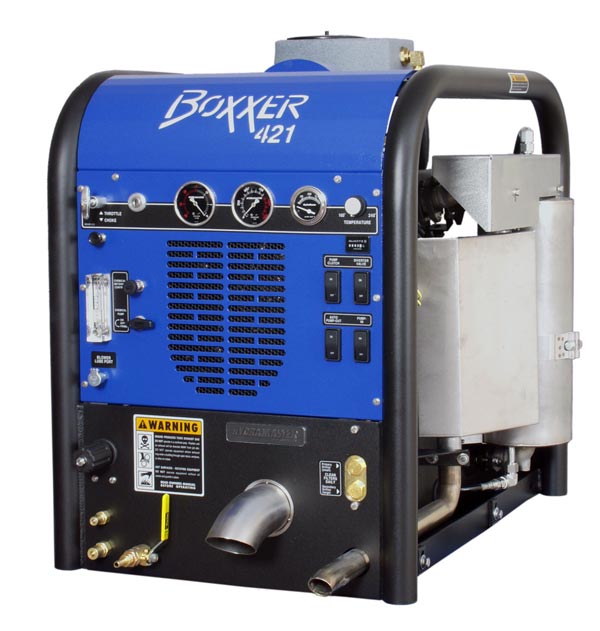

Boxxer 421 Truckmount
Heat
Exchanger System
A unique, mid-priced slide-in with big
machine performance.
This full-featured
cleaning system incorporates Hydramaster's newest generation
of truckmounted technologies for better and faster
cleaning.
The
Perfect Balance Between Power
and Price
The platform of the
Boxxer has been upgraded entirely with new design features
for smoother performance. The engineered stability and
low vibration of the chassis means longer, more
trouble-free component life.
The
2002 Boxxer 421 is a unique truckmount package. Big machine performance is combined with solid
reliability and an economy of purchase price to create
the ideal in
money-making carpet cleaning
equipment.
The vacuum blower in the Boxxer is new technology to
the industry. It incorporates a Three-Lobe Impeller
instead of the typical Two-Lobe construction. The
result is smoother and quieter performance and a
blower that you never have to grease. In addition, the
unit comes standard with a 70 gallon Recovery Tank,
Last-Step Chemical Injection and 1,000 PSI Water
System.
The 21HP Briggs and Stratton
engine has been refined with an exterior oil cooler
and powers a unique new 4005X Tri-Lobe Blower
developed exclusively for Hydramaster by MD
Pneumatics. This new blower has airflow capability
that provides plenty of CFM for those long runs of
vacuum hose and it's quieter than any blower system
we've ever used.
The water heating system of the
Boxxer incorporates Hydramaster's latest engineering
for superior performance. The heat-exchanger system
incorporates a continuous, high-capacity stainless
steel coil as well as a high-pressure tube and fin
exchanger to give the operator the option of
adjustable temperatures 15 degrees hotter than any
other truckmount in its class.
When fitted with the optional
Diverter Package, you get Hydramaster's ADC, Automatic
Diverter Control system. This feature allows teh
Boxxer to deliver precise temperature control without
dumping hot water into the recovery tank like other
machines.
Operating pressures on the
Boxxer are adjustable up to 1000 PSI for hard floor
cleaning needs as well as pressure washing. Other
great features of the Boxxer include Last-Step
Chemical Injection and a large, 70 gallon Recovery
Tank. Options include a Diverter Package for flood
damage work, an Auto Pump-Out system or a special
Fresh Water Tank that can be mounted under the
machine.
System Specifications
Standard
Equipment Package:
Additional
Specifications:
Machine Power Console
Stainless Steel Cleaning Wand
Vacuum Recovery Tank, 70
Gallon
5 Gallon Chemical Jug
100 ft. 2" Vacuum Hose
10 ft. 1-1/2" Wand Whip
Hose
100 ft. High-Pressure
Solution Hose
50 ft. Water Supply Line
Battery Box
Van Decal
Van Installation Kit
Operator's Manual
Hydramaster Jacket
Console Frame: 24" W x 36" L x 32"
H, Steel with baked on Powder-Coat Epoxy finish,
Reinforced Rigid Chassis Recovery Tank: 14" W x 37" L x
33" H, Aluminum, Epoxy finish, 70 Gallon Ignition: Electric Keystart Chemical System: Last-Step Chemical Injection,
Meter Controlled Water Heating: Advanced Heat-Exchanger System,
Engine and Blower Exhaust Engine Exhaust Exchanger: Stainless Steel Coil,
Stainless Exhaust Blower Exhaust Exchanger: Shell & Tube
